STW CNC Machined Steel Flange Track Guide Wheel
- Brand Ahcell
- Type STW
Machined steel flanged track wheels
Material: Carbon steel #45 or Harden steel GCr15(SUJ2)
Bearing: 6000 series ball bearing without seals
Finish: Heat Harden
Applications: Industry drying oven, Production transmit line, Small railway truck, etc.
|

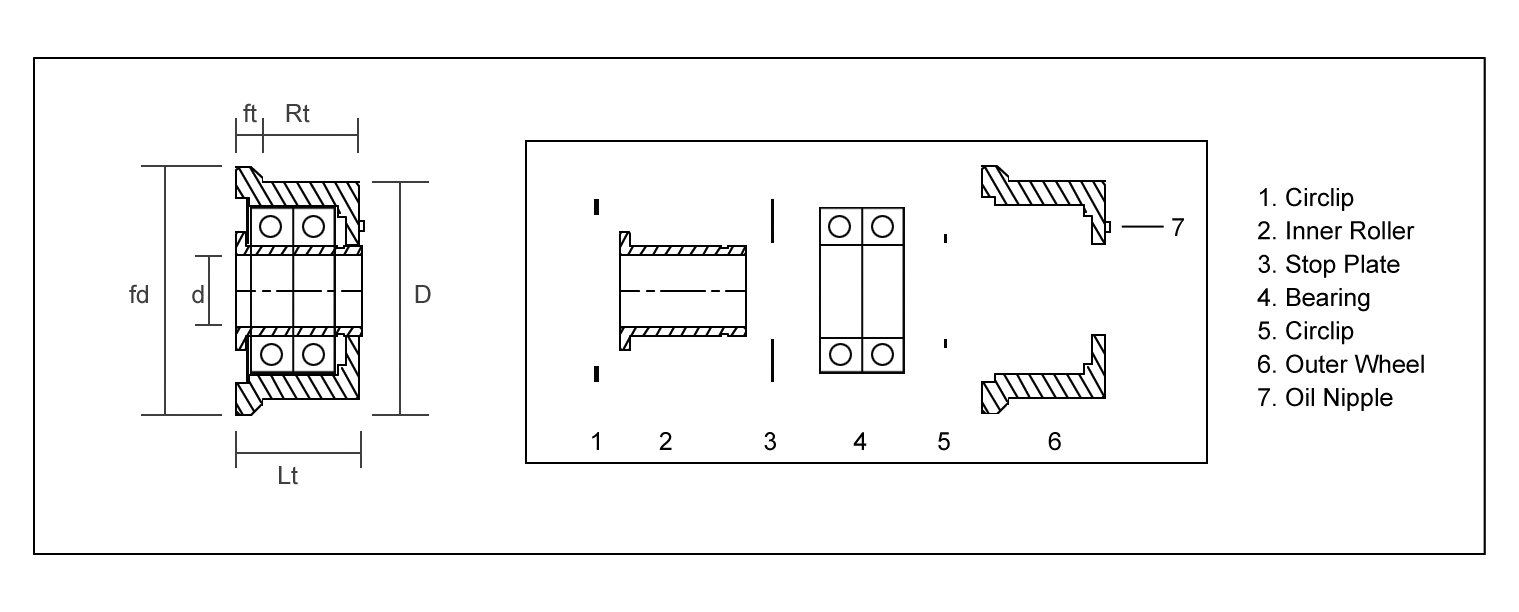

Model |
d |
Lt |
D |
fD |
ft |
Rt |
Bearing |
Loading capacity |
|
STW1535SF |
15 |
35 |
55 |
63.5 |
7.5 |
26.5 |
6004 x2 |
300kgs/660lbs |
|
STW2035SF |
20 |
35 |
60 |
68.5 |
7.5 |
26.5 |
6005 x2 |
350kgs/770lbs |
|
STW2537SF |
25 |
37 |
75 |
90 |
7.5 |
28.5 |
6006 x2 |
400kgs/880lbs |
|
STW3040SF |
30 |
40 |
85 |
95 |
7.5 |
31.5 |
6007 x2 |
450kgs/1000lbs |
|
STW3542SF |
35 |
42 |
95 |
105 |
7.5 |
33.5 |
6008 x2 |
550kgs/1200lbs |
|
STW4043.5SF |
40 |
43.5 |
105 |
115 |
7.5 |
35.5 |
6009 x2 |
680kgs/1500lbs |
|
STW4045SF |
40 |
45 |
120 |
130 |
9 |
35.5 |
6010 x2 |
800kgs/1800lbs |
|
STW4550SF |
45 |
50 |
130 |
140 |
9 |
40.5 |
6011 x2 |
950kgs/2000lbs |
|
STW5050SF |
50 |
50 |
140 |
150 |
9 |
40.5 |
6012 x2 |
1100kgs/2400lbs |
|
STW5070TSF |
50 |
70 |
140 |
150 |
9 |
58.5 |
6012 x3 |
1500kgs/3300lbs |
