CTW Machined Single Flanged Steel Track Wheel
- Brand Ahcell
- Type CTW
Machined steel track wheels
Material: Carbon steel #45+Bearing or Harden steel GCr15(SUJ2)
Bearing: None bearing with greased, Needle Roller Bearing or Bronze Bushing with oil greased
Finish: Heat Harden or Painted
Applications: Industry drying oven, Production transmit line, Small railway truck, etc.
|

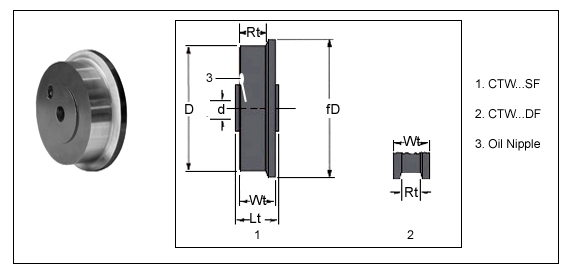

Model |
d |
Lt |
D |
fD |
Rt |
Wt |
(3) |
Bearing |
Max. Speed |
Load Capacity@max speed |
|
CTW12SF-N |
12 |
55 |
125 |
150 |
38 |
50 |
No |
HK1214 x2 |
4000rpm |
650kgs/1400lbs |
|
CTW15SF-N |
15 |
55 |
125 |
150 |
38 |
50 |
No |
HK1514 x2 |
3000rpm |
780kgs/1700lbs |
|
CTW20SF-N |
20 |
55 |
150 |
175 |
38 |
50 |
No |
HK2014 x2 |
2500rpm |
860kgs/1900lbs |
|
CTW25SF-N |
25 |
80 |
200 |
225 |
57 |
75 |
No |
HK2514 x2 |
1900rpm |
1100kgs/2400lbs |
|
CTW30SF-B |
30 |
60 |
125 |
150 |
38 |
50 |
Yes |
FB092H303455 |
1200rpm |
260kgs/570lbs |
|
CTW40SF-B |
40 |
60 |
125 |
150 |
38 |
50 |
Yes |
FB092H404455 |
950rpm |
340kgs/750lbs |
|
CTW45SF-B |
45 |
60 |
125 |
150 |
38 |
50 |
Yes |
FB092H455055 |
850rpm |
380kgs/830lbs |
|
CTW50SF-B |
50 |
70 |
125 |
150 |
38 |
50 |
Yes |
FB092H505555 |
750rpm |
500kgs/1100lbs |
|
CTW25DF-S |
25 |
80 |
150 |
180 |
50 |
75 |
No |
Oilless 253580 |
350rpm |
1500kgs/3300lbs |
|
CTW30DF-S |
30 |
80 |
200 |
230 |
50 |
75 |
No |
Oilless 303880 |
300rpm |
1800kgs/3900lbs |
|
CTW35DF-S |
35 |
110 |
200 |
230 |
65 |
100 |
No |
Oilless 3545110 |
250rpm |
2100kgs/4600lbs |
