Introduction

Ball transfer units

1)are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.

2)Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.

3)They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.

4)Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic.

Part of List for CY series-light & medium duty

	Model No.	Ball size	Loading capacity Maximum/Breaking
1)	CY-15A	15MM	10KG/15KG
2)	CY-18A	18MM	20KG/25KG
3)	CY-25A	25.4MM	25KG/30KG
4)	CY-30A	30MM	40KG/50KG
5)	CY-38A	38MM	60KG/80KG
6)	CY-16B	16MM	10KG/15KG
7)	CY-25B	25MM	25KG/30KG
8)	CY-30B	30MM	35KG/40KG
9)	CY-38B	38MM	45KG/55KG
10)	CY-8H	8MM	3KG/5KG
11)	CY-15H	15MM	15KG/25KG
12)	CY-22H	22MM	40KG/55KG
13)	CY-30H	30MM	70KG/85KG

Part of List for SP series – heavy duty

Model No.	Ball size	Loading capacity Maximum/Breaking
SP-8	8MM	8KG/15KG
SP-12	12MM	25KG/30KG
SP-15	15.875MM	40KG/50KG
SP-22	22.23MM	140KG/160KG
SP-25	25.4MM	180KG/200KG
SP-30	30.16MM	250KG/300KG
SP-45	45MM	450KG/500KG
SP-60	60MM	800KG/1200KG
SP-76	76MM	2000KG/2500KG
SP-90	90MM	3000KG/3500KG
SP-8FL	8MM	8KG/15KG
SP-15FL	15.875MM	40KG/45KG
SP-22FL	22.23MM	140KG/160KG
SP-30FL	30.16MM	200KG/230KG
SP-45FL	45MM	400KG/450KG

How to choose a ball transfer unit?

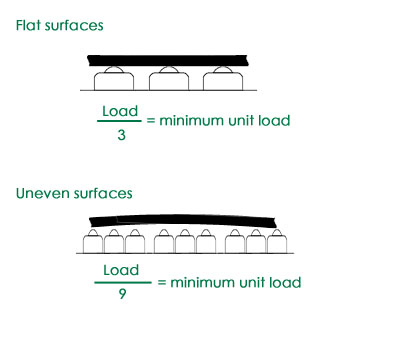

• Maximum Loading Capacity = (weight of article)/3 or 9

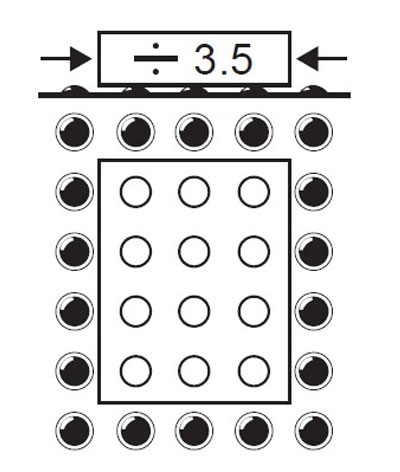

• Maximum Spacing = (article width)/3.5; (article length)/3.5



How to arranging and installing ball transfer units?

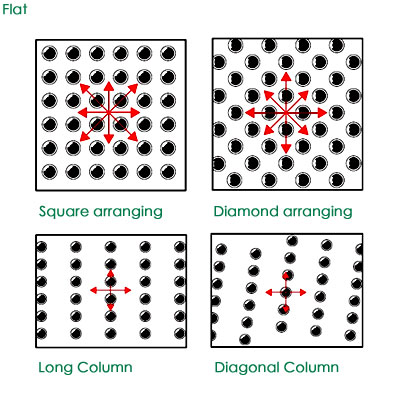

• There are different arranging ways to fit for different moving requirements:

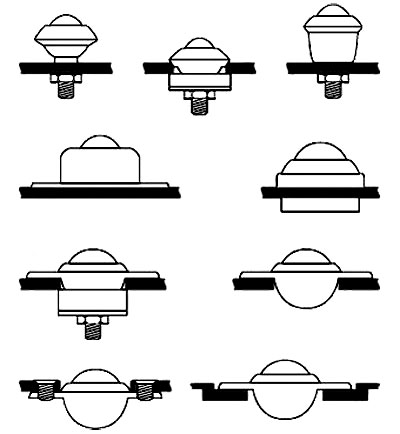

• There are different models of BTU fo choosing:



Applications

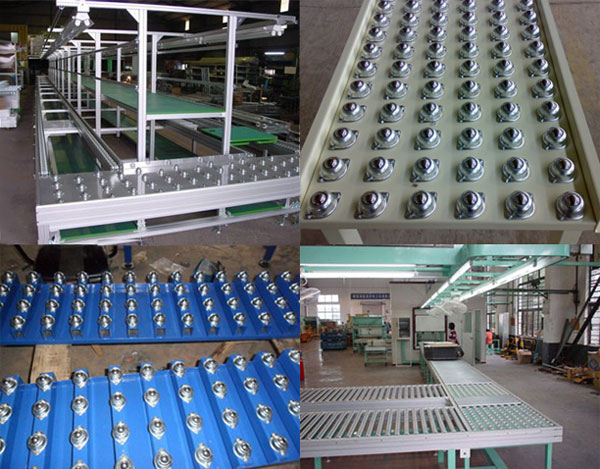

• Typical application in production lines:

• Typical application in goods handling:

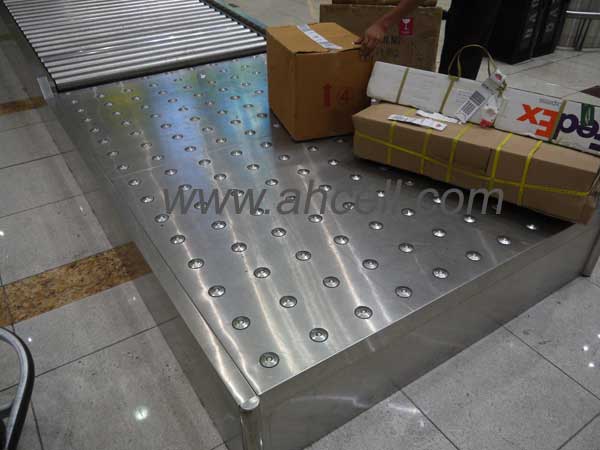

Ball transfer units table in Dubai International Airport

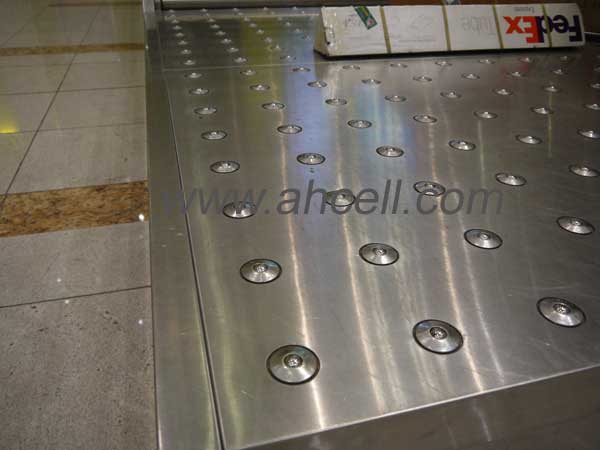

Ball transfer units table in Dubai International Airport

How to delivery?

• Gross weight lower than 50kgs, we suggest delivery by courier like DHL, TNT or others
• Gross weight between 50kgs and 120kgs, we suggest delivery by aircargo
• Gross weight over 120kgs, it can be delivered by sea shipping

FAQ

Q: Do you make ball transfer units?

A: Yes. We offer CY, SP, KSM, NL, and KSF series with load capacities from 1kg to 500kg. Ball materials include steel, stainless steel, and nylon. Mounting options include flange, drop-in, and threaded. Please provide your load, ball material, mounting type, and quantity for a precise quotation.

Q: What is the load capacity of CY-25A?

A: CY-25A belongs to our CY standard series. Capacity depends on the exact ball diameter and mounting hole spacing. To get an accurate rating, please share the drawing or specify the variant so our engineers can confirm against the catalog specification table.

Q: Can I get a stainless steel version?

A: Yes. Full stainless steel CY series (CY-*SS) is available, for example CY-38A SS. Stainless steel suits humid, washdown, food, or chemical-exposure lines; confirm the current lead time and minimum quantity with our sales team for your variant.

Q: How do I choose between carbon steel and stainless steel ball transfer units?

A: Carbon steel is more economical and suitable for dry indoor environments. Stainless steel resists rust and is better for humid, washdown, food, or chemical exposure. For lightly loaded, scratch-sensitive applications, nylon balls are a good alternative.
